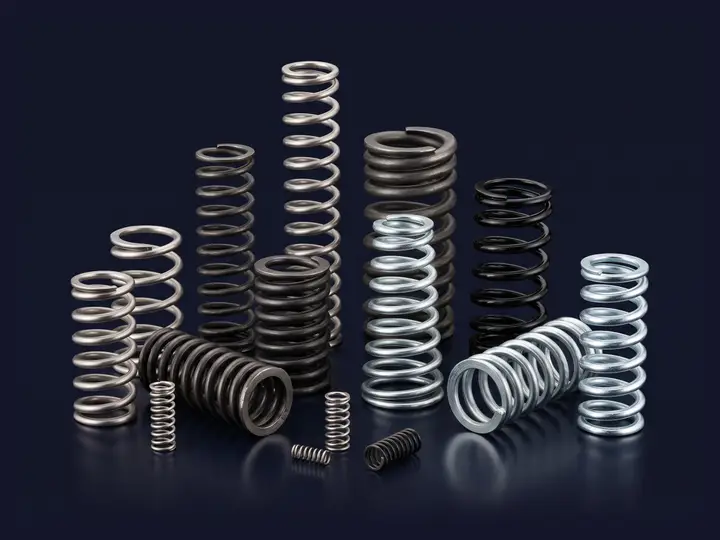

Compression springs
A compression spring stores energy under axial load and returns to its free length once the load is removed. Every dimension, from wire diameter to pitch, is taken from your drawing or sample.
Besides cylindrical bodies, conical, barrel and hourglass shapes as well as variable-pitch coils are wound to drawing. Wire diameter range: Ø0.10–8 mm.
Wire diameterØ0.10–8 mm
Use the calculator for a first estimateApplications
- Automotive mechanisms
- Locks and security systems
- Valves, pumps and boilers
- Home appliances and kitchenware
- Agricultural and general machinery
- Medical devices
Technical notes
Useful information to include on your drawing:
- 01Wire diameter (d)
- 02Outer diameter (De) or inner diameter (Di)
- 03Free length (L0)
- 04Active and total number of coils
- 05End type: closed, closed and ground, or open
- 06Coiling direction: right or left hand
- 07Working length and required load at that length (if any)
- 08Material and surface finish
Send a drawing for this product
Send your drawing or a photo of your sample and get a price the same business day.
